Lack of Visibility in Web Applications

November 26, 2015

Risks

I see this as an indirect risk to the asset of web application ownership (That’s the assumption that you will always own your web application).

Not being able to introspect your application at any given time or being able to know how the health status is, is not a comfortable place to be in and there is no reason you should be there.

Insufficient Logging and Monitoring

average-widespread-veryeasy-moderate

Can you tell at any point in time if someone or something is:

  • Using your application in a way that it was not intended to be used
  • Violating policy. For example circumventing client side input sanitisation.

How easy is it for you to notice:

  • Poor performance and potential DoS?
  • Abnormal application behaviour or unexpected logic threads
  • Logic edge cases and blind spots that stake holders, Product Owners and Developers have missed?

Countermeasures

As Bruce Schneier said: “Detection works where prevention fails and detection is of no use without response“. This leads us to application logging.

With good visibility we should be able to see anticipated and unanticipated exploitation of vulnerabilities as they occur and also be able to go back and review the events.

Insufficient Logging

PreventionAVERAGE

When it comes to logging in NodeJS, you can’t really go past winston. It has a lot of functionality and what it does not have is either provided by extensions, or you can create your own. It is fully featured, reliable and easy to configure like NLog in the .NET world.

I also looked at express-winston, but could not see why it needed to exist.

{
   ...
   "dependencies": {
      ...,
      "config": "^1.15.0",
      "express": "^4.13.3",
      "morgan": "^1.6.1",
      "//": "nodemailer not strictly necessary for this example,",
      "//": "but used later under the node-config section.",
      "nodemailer": "^1.4.0",
      "//": "What we use for logging.",
      "winston": "^1.0.1",
      "winston-email": "0.0.10",
      "winston-syslog-posix": "^0.1.5",
      ...
   }
}

winston-email also depends on nodemailer.

Opening UDP port

with winston-syslog seems to be what a lot of people are using. I think it may be due to the fact that winston-syslog is the first package that works well for winston and syslog.

If going this route, you will need the following in your /etc/rsyslog.conf:

$ModLoad imudp
# Listen on all network addresses. This is the default.
$UDPServerAddress 0.0.0.0
# Listen on localhost.
$UDPServerAddress 127.0.0.1
$UDPServerRun 514
# Or the new style configuration.
Address <IP>
Port <port>
# Logging for your app.
local0.* /var/log/yourapp.log

I Also looked at winston-rsyslog2 and winston-syslogudp, but they did not measure up for me.

If you do not need to push syslog events to another machine, then it does not make much sense to push through a local network interface when you can use your posix syscalls as they are faster and safer. Line 7 below shows the open port.

root@kali:~# nmap -p514 -sU -sV <target IP> --reason

Starting Nmap 6.47 ( http://nmap.org )
Nmap scan report for kali (<target IP>)
Host is up, received arp-response (0.0015s latency).
PORT STATE SERVICE REASON VERSION
514/udp open|filtered syslog no-response
MAC Address: 34:25:C9:96:AC:E0 (My Computer)

Using Posix

The winston-syslog-posix package was inspired by blargh. winston-syslog-posix uses node-posix.

If going this route, you will need the following in your /etc/rsyslog.conf instead of the above:

# Logging for your app.
local0.* /var/log/yourapp.log

Now you can see on line 7 below that the syslog port is no longer open:

root@kali:~# nmap -p514 -sU -sV <target IP> --reason

Starting Nmap 6.47 ( http://nmap.org )
Nmap scan report for kali (<target IP>)
Host is up, received arp-response (0.0014s latency).
PORT STATE SERVICE REASON VERSION
514/udp closed syslog port-unreach
MAC Address: 34:25:C9:96:AC:E0 (My Computer)

Logging configuration should not be in the application startup file. It should be in the configuration files. This is discussed further under the Store Configuration in Configuration files section.

Notice the syslog transport in the configuration below starting on line 39.

module.exports = {
   logger: {
      colours: {
         debug: 'white',
         info: 'green',
         notice: 'blue',
         warning: 'yellow',
         error: 'yellow',
         crit: 'red',
         alert: 'red',
         emerg: 'red'
      },
      // Syslog compatible protocol severities.
      levels: {
         debug: 0,
         info: 1,
         notice: 2,
         warning: 3,
         error: 4,
         crit: 5,
         alert: 6,
         emerg: 7
      },
      consoleTransportOptions: {
         level: 'debug',
         handleExceptions: true,
         json: false,
         colorize: true
      },
      fileTransportOptions: {
         level: 'debug',
         filename: './yourapp.log',
         handleExceptions: true,
         json: true,
         maxsize: 5242880, //5MB
         maxFiles: 5,
         colorize: false
      },
      syslogPosixTransportOptions: {
         handleExceptions: true,
         level: 'debug',
         identity: 'yourapp_winston'
         //facility: 'local0' // default
            // /etc/rsyslog.conf also needs: local0.* /var/log/yourapp.log
            // If non posix syslog is used, then /etc/rsyslog.conf or one
            // of the files in /etc/rsyslog.d/ also needs the following
            // two settings:
            // $ModLoad imudp // Load the udp module.
            // $UDPServerRun 514 // Open the standard syslog port.
            // $UDPServerAddress 127.0.0.1 // Interface to bind to.
      },
      emailTransportOptions: {
         handleExceptions: true,
         level: 'crit',
         from: 'yourusername_alerts@fastmail.com',
         to: 'yourusername_alerts@fastmail.com',
         service: 'FastMail',
         auth: {
            user: "yourusername_alerts",
            pass: null // App specific password.
         },
         tags: ['yourapp']
      }
   }
}

In development I have chosen here to not use syslog. You can see this on line 3 below. If you want to test syslog in development, you can either remove the logger object override from the devbox1-development.js file or modify it to be similar to the above. Then add one line to the /etc/rsyslog.conf file to turn on. As mentioned in a comment above in the default.js config file on line 44.

module.exports = {
   logger: {
      syslogPosixTransportOptions: null
   }
}

In production we log to syslog and because of that we do not need the file transport you can see configured starting on line 30 above in the default.js configuration file, so we set it to null as seen on line 6 below in the prodbox-production.js file.

I have gone into more depth about how we handle syslogs here, where all of our logs including these ones get streamed to an off-site syslog server. Thus providing easy aggregation of all system logs into one user interface that DevOpps can watch on their monitoring panels in real-time and also easily go back in time to visit past events. This provides excellent visibility as one layer of defence.

There were also some other options for those using Papertrail as their off-site syslog and aggregation PaaS, but the solutions were not as clean as simply logging to local syslog from your applications and then sending off-site from there.

module.exports = {
   logger: {
      consoleTransportOptions: {
         level: {},
      },
      fileTransportOptions: null,
      syslogPosixTransportOptions: {
         handleExceptions: true,
         level: 'info',
         identity: 'yourapp_winston'
      }
   }
}
// Build creates this file.
module.exports = {
   logger: {
      emailTransportOptions: {
         auth: {
            pass: 'Z-o?(7GnCQsnrx/!-G=LP]-ib' // App specific password.
         }
      }
   }
}

The logger.js file wraps and hides extra features and transports applied to the logging package we are consuming.

var winston = require('winston');
var loggerConfig = require('config').logger;
require('winston-syslog-posix').SyslogPosix;
require('winston-email').Email;

winston.emitErrs = true;

var logger = new winston.Logger({
   // Alternatively: set to winston.config.syslog.levels
   exitOnError: false,
   // Alternatively use winston.addColors(customColours); There are many ways
   // to do the same thing with winston
   colors: loggerConfig.colours,
   levels: loggerConfig.levels
});

// Add transports. There are plenty of options provided and you can add your own.

logger.addConsole = function(config) {
   logger.add (winston.transports.Console, config);
   return this;
};

logger.addFile = function(config) {
   logger.add (winston.transports.File, config);
   return this;
};

logger.addPosixSyslog = function(config) {
   logger.add (winston.transports.SyslogPosix, config);
   return this;
};

logger.addEmail = function(config) {
   logger.add (winston.transports.Email, config);
   return this;
};

logger.emailLoggerFailure = function (err /*level, msg, meta*/) {
   // If called with an error, then only the err param is supplied.
   // If not called with an error, level, msg and meta are supplied.
   if (err) logger.alert(
      JSON.stringify(
         'error-code:' + err.code + '. '
         + 'error-message:' + err.message + '. '
         + 'error-response:' + err.response + '. logger-level:'
         + err.transport.level + '. transport:' + err.transport.name
      )
   );
};

logger.init = function () {
   if (loggerConfig.fileTransportOptions)
      logger.addFile( loggerConfig.fileTransportOptions );
   if (loggerConfig.consoleTransportOptions)
      logger.addConsole( loggerConfig.consoleTransportOptions );
   if (loggerConfig.syslogPosixTransportOptions)
      logger.addPosixSyslog( loggerConfig.syslogPosixTransportOptions );
   if (loggerConfig.emailTransportOptions)
      logger.addEmail( loggerConfig.emailTransportOptions );
};

module.exports = logger;
module.exports.stream = {
   write: function (message, encoding) {
      logger.info(message);
   }
};

When the app first starts it initialises the logger on line 7 below.

//...
var express = require('express');
var morganLogger = require('morgan');
var logger = require('./util/logger'); // Or use requireFrom module so no relative paths.
var app = express();
//...
logger.init();
app.set('port', process.env.PORT || 3000);
app.set('views', __dirname + '/views');
app.set('view engine', 'jade');
//...
// In order to utilise connect/express logger module in our third party logger,
// Pipe the messages through.
app.use(morganLogger('combined', {stream: logger.stream}));
//...
app.use(express.static(path.join(__dirname, 'public')));
//...
require('./routes')(app);

if ('development' == app.get('env')) {
   app.use(errorHandler({ dumpExceptions: true, showStack: true }));
   //...
}
if ('production' == app.get('env')) {
   app.use(errorHandler());
   //...
}

http.createServer(app).listen(app.get('port'), function(){
   logger.info(
      "Express server listening on port " + app.get('port') + ' in '
      + process.env.NODE_ENV + ' mode'
   );
});

* You can also optionally log JSON metadata
* You can provide an optional callback to do any work required, which will be called once all transports have logged the specified message.

Here are some examples of how you can use the logger. The logger.log(<level> can be replaced with logger.<level>( where level is any of the levels defined in the default.js configuration file above:

// With string interpolation also.
logger.log('info', 'test message %s', 'my string');
logger.log('info', 'test message %d', 123);
logger.log('info', 'test message %j', {aPropertyName: 'Some message details'}, {});
logger.log('info', 'test message %s, %s', 'first', 'second', {aPropertyName: 'Some message details'});
logger.log('info', 'test message', 'first', 'second', {aPropertyName: 'Some message details'});
logger.log('info', 'test message %s, %s', 'first', 'second', {aPropertyName: 'Some message details'}, logger.emailLoggerFailure);
logger.log('info', 'test message', 'first', 'second', {aPropertyName: 'Some message details'}, logger.emailLoggerFailure);

Also consider hiding cross cutting concerns like logging using Aspect Oriented Programing (AOP)

Insufficient Monitoring

PreventionEASY

There are a couple of ways of approaching monitoring. You may want to see the health of your application even if it is all fine, or only to be notified if it is not fine (sometimes called the dark cockpit approach).

Monit is an excellent tool for the dark cockpit approach. It’s easy to configure. Has excellent short documentation that is easy to understand and the configuration file has lots of examples commented out ready for you to take as is and modify to suite your environment. I’ve personally had excellent success with Monit.



Risks that Solution Causes

Lack of Visibility

With the added visibility, you will have to make decisions based on the new found information you now have. There will be no more blissful ignorance if there was before.

Insufficient Logging and Monitoring

There will be learning and work to be done to become familiar with libraries and tooling. Code will have to be written around logging as in wrapping libraries, initialising and adding logging statements or hiding them using AOP.



Costs and Trade-offs

Insufficient Logging and Monitoring

You can do a lot for little cost here. I would rather trade off a few days work in order to have a really good logging system through your code base that is going to show you errors fast in development and then show you different errors in the places your DevOps need to see them in production.

Same for monitoring. Find a tool that you find working with a pleasure. There are just about always free and open source tools to every commercial alternative. If you are working with a start-up or young business, the free and open source tools can be excellent to keep ongoing costs down. Especially mature tools that are also well maintained like Monit.

Additional Resources

Advertisements

TL-WN722N on Kali VM on Linux Host

September 3, 2015

The following is the process I found to set-up the pass-through of the very common USB TP-LINK TL-WN722N Wifi adapter (which is known to work well with Linux) to a Virtual Host Kali Linux 1.1.0 (same process for 2.0) guest, by-passing the Linux Mint 17.1 (Rebecca) Host.

Virtualisation

VirtualBox 4.3.18_r96516

Wifi adapter

TP-LINK TL-WN722N Version 1.10

  • chip-set: Atheros ar9271
  • Vendor ID: 0cf3
  • Product ID: 9271
  • Module (driver): ath9k_htc

TL-WN722N

Useful commands

  • iwconfig
  • ifconfig
  • sudo lshw -C network
  • iwlist scan
  • lsusb
  • dmesg | grep -e wlan -e ath9
  • contents of /var/log/syslog
  • lsmod
  • Release DHCP assigned IP. Similar to Windows ipconfig /release
    dhclient -r [interface-name]
  • Renew DHCP assigned IP. Similar to Windows ipconfig /renew
    dhclient [interface-name]

Why?

I want to be able to access the internet on my laptop at the same time that I’m penetration testing a client network. I use my phone as a wireless hot-spot to access the internet. The easiest way to do this is to use the laptops on-board wireless interface to connect to the phones wireless hot-spot and pass the USB Wifi adapter straight to the guest.

Taking the following statement: “The preferred way to get Internet over wlan into a VM is to use the WLAN adapter on the host and using normal NAT for the VM. Passing USB WLAN adapters to the guest is almost untested.” from here, I like to think of more of a challenge than anything else. It can be however, something to keep in mind. if you’re prepared to persevere, you’ll get it working.

How

Reconnaissance

When you plug the Wifi adapter into your laptop and run lsusb, you should see a line that looks like:

ID 0cf3:9271 Atheros Communications, Inc. AR9271 802.11n

The first four hex digits are the Vendor ID and the second four hex digits are the Product ID.

If you have a look from the bottom up of the /var/log/syslog file, you’ll see similar output to the following:

kernel: [ 98.212097] usb 2-2: USB disconnect, device number 3
kernel: [ 102.654780] usb 1-1: new high-speed USB device number 2 using ehci_hcd
kernel: [ 103.279004] usb 1-1: New USB device found, idVendor=0cf3, idProduct=7015
kernel: [ 103.279014] usb 1-1: New USB device strings: Mfr=16, Product=32, SerialNumber=48
kernel: [ 103.279020] usb 1-1: Product: UB95
kernel: [ 103.279025] usb 1-1: Manufacturer: ATHEROS
kernel: [ 103.279030] usb 1-1: SerialNumber: 12345
kernel: [ 103.597849] usb 1-1: ath9k_htc: Transferred FW: htc_7010.fw, size: 72992
kernel: [ 104.596310] ath9k_htc 1-1:1.0: ath9k_htc: Target is unresponsive
kernel: [ 104.596328] Failed to initialize the device
kernel: [ 104.605694] ath9k_htc: probe of 1-1:1.0 failed with error -22

Provide USB privileges to guest

First of all you need to add the user that controls guest to the vboxusers group on the host so that VM’s can control USB devices. logout/in of/to host.

Provide USB recognition to guest

Install the particular VirtualBox Extension Pack on to the host as discussed here. These packs can be found here. If you have an older version of VirtualBox, you can find them here. Don’t forget to checksum the pack before you add the extension.

  1. apt-get update
  2. apt-get upgrade
  3. apt-get dist-upgrade
  4. apt-get install linux-headers-$(uname -r)
  5. Shutdown Linux guest OS
  6. Apply extension to VirtualBox in the host at: File -> Preferences -> Extensions

Blacklist Wifi Module on Host

Unload the ath9k_htc module to take effect immediately and blacklist it so that it doesn’t load on boot. The module needs to be blacklisted on the host in order for the guest to be able to load it. Now we need to check to see if the module is loaded on the host with the following command:

lsmod | grep -e ath

We’re looking for ath9k_htc. If it is visible in the output produced from previous command, unload it with the following command:

modprobe -r ath9k_htc

Now you’ll need to create a blacklist file in /etc/modprobe.d/. Create /etc/modprobe.d/blacklist-ath9k.conf and add the following text into it and save:

blacklist ath9k_htc

Now go into the settings of your VM -> USB -> and add a Device Filter. I name this tl-wn722n and add the Vendor and Product ID’s we discovered with lsusb. Make sure The “Enable USB 2.0 (EHCI) Controller” is enabled also.

USBDeviceFilter

Upgrade Driver on Guest

Start the VM.

Install the latest firmware-atheros package

On the guest, check to see which version of firmware-atheros is installed:

dpkg-query -l '*atheros*'

Will probably be 0.44kali whether you’re on Kali Linux 1.0.0 or 2.

aptitude show firmware-atheros

Will provide lots more information if you’re interested. So now we need to remove this old package:

apt-get remove --purge firmware-atheros

Add the jessie-backports (that’s Debian 8.0) repository to your /etc/apt/sources.list in the following form:

deb http://ftp.nz.debian.org/debian jessie-backports main contrib non-free

Change the country prefix to your country if you like and follow it up with an update:

apt-get update

Then install the later package from the new repository we just added:

apt-get install -t jessie-backports firmware-atheros

Now if you run the dpkg-query -l '*atheros*' command again, you’re package should be on version 0.44~bp8+1

Test

Plug your Wifi adapter into your laptop.

In the Devices menu of your guest -> USB Devices, you should be able to select the “ATHEROS USB2.0 WLAN” adapter.

Run dmesg | grep htc and you should see something similar to the following printed:

[ 4.648701] usb 2-1: ath9k_htc: Firmware htc_9271.fw requested
[ 4.648805] usbcore: registered new interface driver ath9k_htc
[ 4.649951] usb 2-1: firmware: direct-loading firmware htc_9271.fw
[ 4.966479] usb 2-1: ath9k_htc: Transferred FW: htc_9271.fw, size: 50980
[ 5.217395] ath9k_htc 2-1:1.0: ath9k_htc: HTC initialized with 33 credits
[ 5.860808] ath9k_htc 2-1:1.0: ath9k_htc: FW Version: 1.3

You should now be able to select the phones wireless hot-spot you want to connect to in network manager.

Additional Resources

  1. ath9k_htc Debian Module
  2. VirtualBox information around setting up the TL-WN722N
  3. TP-LINK TL-WN722N wiki
  4. Loading and unloading Linux Kernel Modules
  5. Kernel Module Blacklisting

Procurement & Config of Sun Fire V240 & ALOM

October 25, 2014

This is the sequence of events I took to prepare a Sun Fire V240 for hosting pfSense which is a free and open source FreeBSD based enterprise grade routing solution for a client of mine.

Recently I was tasked with setting up a network with what I considered to be enterprise grade hardware and software as cheaply as possible. When I take on these sorts of tasks, security is forefront in my mind, so I often look toward components that are as open as possible and that don’t sport any known (to me at least) back-doors and are able to be easily upgraded and patched at little to no cost.

A requirement was clean shut-downs on power failure events at least for the critical servers.

Procured Kit

  1. APC Smart-UPS 5000 with batteries in good condition. Worth a little under $6k if you’re buying new. I wouldn’t buy new. If you shop around, these can be picked up at a fraction of that cost. From my experience the APC kit is some of the best UPS gear available.
    APC Smart-UPS 5000
  2. AP9630 UPS network management card $92 new. Most of the details around setting these UPS’s up I’ve already posted on. If you search my blog for “APC UPS” you’ll find it.
    APC AP9630
  3. Enterprise grade router/firewall:
    Sun Fire V240 (RISC architecture). 2 x UltraSparc-IIIi 1.5Ghz CPU. 4Gbit on-board Ethernet ports. Lights-out management port. 4GB RAM. 2U. Dual redundant PSU’s. 2 x 72GB Hot Swap 10k SCSI HDD’s. With rack mount rails. Currently going for around $1.5k on Ebay. Price paid: $160 incl shipping. I doubt you’d find anything of these specifications off the shelf for under a $1000. This is a lot of server for a very small amount of money.
    Sun Fire V240
  4. Firmware: pfSense. Free and open source.

Planning

As part of my planning I evaluated (again) whether or not free software routing solutions are actually up to the task of the enterprise. My research led me to believe some were… based on others that had already been down this route ( PTP 😉 ). Openness is a biggie for me. I like to know that eyes are on the software rather than it being closed up in a proprietary package.

I evaluated m0n0Wall, ipCop (Linux based), smoothwall and pfSense. pfSense had been used in quite a few large environments successfully. When I had made my decision on the firmware to use, I went through the hardware requirements and of course started looking for high quality second-hand gear.

For the router hardware I was going to need at lease 1GHz CPU as I wanted to run Snort as my IDS/IPS. PCI-X or PCI-e network adapters (which of course I didn’t need to worry about with the Sun Fire server). Snort needs 512MB RAM minimum. Preferably at least 1GB.

Gaining Access to the Sun Fire V240

Now I had no idea of how the previous owner had setup the configuration of the ALOM (Advanced Lights Out Management). In fact I hadn’t administered a Sun Fire server before at all. On page 11 of the Sun FireTM V210 and V240 Servers Getting Started Guide it states the following:

The system console is directed to ALOM by default and is configured to show server console information on startup.
ALOM enables you to monitor and control your server over either a serial
connection (using the SERIAL MGT port), or Ethernet connection (using the NET MGT port).
For information about configuring an Ethernet connection, refer to the Sun Advanced Lights Out Manager Software User’s Guide.” The NET MGT port can also be disabled and in my case it turned out it was, but I’ll get to that later. I didn’t have a spare DB-9 to RJ-45 adapter lying around to wire it up and connect to the SERIAL MGT port.

Sun Fire V240 rear

Telnet?

(but didn’t get that far)

Since I was going to go down the path of trying to connect to the ALOM console via the NET MGT Ethernet port, I thought telnet would probably be the path of least resistance.

Page 10 of the “Sun Advanced Lights Outs Manager Software User’s Guide” stated the following:

The 10-Mbyte Ethernet port enables you to access ALOM from within your company
network. You can connect to ALOM remotely using any standard Telnet client”. On the V240, the
ALOM Ethernet port is referred to as the NET MGT port.

Using a laptop with Kali Linux installed (because it has lots of great tools for network reconnaissance), Running

ethtool eth0

told me that my NIC supported:
10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Half 1000baseT/Full

Wireshark?

Tried connecting directly to the NET MGT port with wireshark running on my laptop. Didn’t get any packets from the device. At the time I thought it may have been because my laptop’s NIC was using 100baseT, but later on I found out that the NET MGT port was disabled.

Tried pinging my broadcast address ping -b 255.255.255.255 then checked my arp table arp -a. No results that looked like what I was looking for. Of course this strategy would have taken quite some time to complete… and in my case it would have yielded no results anyway.

NMap?

I started with the private IPv4 address spaces. Using Wi-fi on my Kali box, tried the 16 bit block:

nmap -sn 192.168.*.*

Got a false positive of a cable modem. How did I work out that it was a false positive?

nmap -A <falsePositiveIPOfCableModem> # Gave me the model and everything I needed to know about the device to rule it out.

Next up the 20 bit block

nmap -sn 172.16.0.0/12
Nmap done: 1048576 IP addresses (0 hosts up) scanned in 108670.97 seconds

In earlier releases of nmap the -sn switch was known as -sP

I decided I needed to try and speed up the scan, so I connected directly to the V240 NET MGT port with a Cat5 patch cable (ethtool told me my laptop’s NIC had MDI-X on (force crossover mode)) and made sure my network card supported 10baseT which the “Sun Advanced Lights Outs Manager Software User’s Guide” told me it needed for the NET MGT port. Turns out the NET MGT port didn’t support 10baseT. Details a bit further down.

Added a static IP address to the /etc/network/interfaces. Currently it looked like:

auto lo
iface lo inet loopback

auto wlan0
iface wlan0 inet dhcp

So I commented out the auto wlan0 and iface wlan0 inet dhcp and added the following:

auto eth0
iface eth0 inet static
address 10.1.1.6
netmask 255.255.255.0
broadcast 10.1.1.255
#gateway 10.1.1.1 # Make sure you don't add a gateway, as we're connecting directly to the V240

followed by:

service networking restart

then changed my /etc/NetworkManager/NetworkManager.conf
managed=true to be managed=false
So Network manager didn’t keep interfering with my interfaces.

I followed this with a

service network-manager restart

followed with ifconfig to make sure my network interface was using the correct IP address, netmask and broadcast. It wasn’t, so…

ifdown eth0
ifup eth0
ifconfig

Success, it now was.

Now to make sure my network card was communicating in a manner that the V240’s NET MGT port would understand.

Using ethtool

ethtool eth0

told me 10baseT was supported, but it also told me my current speed was 100Bb/s. So I tried changing the speed with

ethtool -s eth0 speed 10

and received Cannot advertise speed 10. So made the following temporary changes as they’ll be lost on reboot. Changed the duplex… Ran the following:

ethtool -s eth0 speed 10 duplex half

Now with a:

ethtool eth0

I got:

Speed: unknown!
Duplex: Unknown! (255)

So turned the auto negotiation off:

ethtool -s eth0 speed 10 duplex half autoneg off

Now with a:

ethtool eth0

I got:

Speed: 10Mb/s
Duplex: Half
Auto-negotiation: off
#and some other settings.

Some useful ethtool resources:

With these settings the NET MGT port didn’t have it’s green link led on. So I kept playing with the settings. Turns out it would only work with speed 100 duplex full contrary to page 10 of the “Sun Advanced Lights Out Manager Software User’s Guide”
These were the settings that gave me link:

Supported pause frame use: No #Don't think I fiddled with this.
Supports auto-negotiation: Yes
Advertised link modes: Not reported #Don't think I fiddled with this.
Advertised pause frame use: Symmetric #Don't think I fiddled with this.
Advertised auto-negotiation: No
Speed: 100Mb/s
Duplex: full
Port: Twisted Pair #Don't think I fiddled with this.
PHYAD: 1 #Don't think I fiddled with this.
Transceiver: internal #Don't think I fiddled with this.
Auto-negotiation: off
MDI-X: on
Supports Wake-on: g #Don't think I fiddled with this.
Wake-on: d #Don't think I fiddled with this.
Current message level: 0x000000ff (255)
drv prove link timer ifdown ifup rx_err tx_err
Link detected: yes

I was now confident that if the Sun Fire V240 NET MGT port was enabled, we’d find it’s IP address if it was using one from the private space. It was time to try the last and largest private address space. Oh, I also used wireshark to make sure nmap was doing what I expected on my laptop when I ran:

nmap -v -sn 10.0.0.0/8

I was a little confused to start with as nmap told me Scanning 4096 hosts I soon realised after checking the CIDR (Classless InterDomain Routing) and by the output nmap produced, that nmap was doing the scanning in chunks. As there was going to be a lot of results, I setup the output to files:

nmap -v -sn -oA 'scan-%Y-%m-%d_%H-%M 10.0.0.0/8

This produces the output in all three formats as discussed here.

SERIAL MGT Port?

This private address range was going to take a few days to scan, so I decided to have a poke at the SERIAL MGT port on the Sun Fire V240.

To use the SERIAL MGT port, a RJ-45 patch cable connected to a DB-9 adapter ($4.50 from globalpc) is required Unless you get the official Sun adaptor “530-3100-01”, or still have the one that came in the new box. So I splashed out and went with the $4.50 option. It cost me more in gas to get to the shop than buy the part. I Wired it up according to page 25 of the “Sun Fire V210 and V240 Servers Installation Guide“.

RJ-45 to DB-9 Adapter Crossovers
SERIAL MGT Port Adapter (DB-9) Pin
1 (RTS) 8 (CTS)
2 (DTR) 6 (DSR)
3 (TXD) 2 (RXD)
4 (Signal Ground) 5 (Signal Ground)
5 (Signal Ground) 5 (Signal Ground)
6 (RXD) 3 (TXD)
7 (DSR) 4 (DTR)
8 (CTS) 7 (RTS)

Red wire in with green.

RJ45-DB9 RJ45

Installed minicom and setserial and did pretty much the same as I did here. Plugged the console cable in and tried to establish a connection.

Then found that by default ALOM only communicates through the SERIAL MGT port at startup (of ALOM I thought), but it seems that at power on of the server also.

At the {1} ok prompt, I typed #. (that’s hash followed with dot) to escape from the system console sc>

I then entered the showsc command and found that the MGT NET port was disabled.
I then ran a

usershow

to see which user accounts existed and was prompted to set a password for the admin user.
When you connect to ALOM for the first time, you are automatically connected as the admin account.“.
So obviously the seller of the system reset ALOM.

SettingAdminPassword

Also audited the user accounts, and the details on the permission levels are here.

Ran the following script. A nice little dialog from Ramesh here (see step 4) too.

setupsc
  • Turned NET MGT port on
  • Changed the default if_connection from none to ssh
  • Answered no to email alerts (only for logged in users)
  • Yes to configure the network interfaces
  • No to DHCP
  • Entered the IP address for the NET MGT port
  • Entered the netmask for the NET MGT port
  • Entered the gateway for the Net Mgt port
  • Should powerstate memory be enabled [y]? y
  • Enabled power on sequencing

Then we need to restart the ALOM to apply the new settings.

resetsc -y

If you still have minicom running, it’ll show you what happens during the boot sequence and then present you with a login prompt.

Extra Resources

SSH

At this point I plugged the Ethernet cable from my test switch (10 Mbit/s capable) back into the NET MGT port of the Sun Fire V240 and tested that ALOM was responding on the IP address that I set the NET MGT port to.

ping <myNetMgtIP>

It was answering. So I attempted to SSH in on a different machine.

ssh admin@<myNetMgtIP>

I was presented with the hosts key fingerprint

The authenticity of host <myNetMgtIP> (<myNetMgtIP>)' can't be established.
RSA key fingerprint is <myExistingHostKeyInHex>.
Are you sure you want to continue connecting (yes/no)?

I wanted to know I was connecting to what I thought I was connecting to, so answered no.
Then in minicom I queried the hosts key fingerprint

ssh-keygen -l -t rsa

I was provided with the key fingerprint that matched what I was presented with when I attempted to SSH, so I new I was actually communicating with the server I thought I was.

I then regenerated the hosts key fingerprint

ssh-keygen -r -t rsa

and was provided with the new key. A restart of the SSH daemon is required to load the new host key.

sc> restartssh

Then SSH in. Confirm when prompted that the host key matches the newly provided key.

ssh admin@<myNetMgtIP>
The authenticity of host <myNetMgtIP> (<myNetMgtIP>)' can't be established.
RSA key fingerprint is <myNewHostKeyInHex>.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '<myNetMgtIP>' (RSA) to the list of known hosts.

Copyright 2009 Sun Microsystems, Inc.  All rights reserved.
Use is subject to license terms.

Sun(tm) Advanced Lights Out Manager <versionHere> ()

Please login: admin
Please Enter password: *********

sc>

We’re in!

At any time for a list of commands, you can type help.

logout
Connection to <myNetMgtIP> closed.

We’re out!

Up and Running with Kali Linux and Friends

March 29, 2014

When it comes to measuring the security posture of an application or network, the best defence against an attacker is offence. What does that mean? It means your best defence is to have someone with your best interests (generally employed by you), if we’re talking about your asset, assess the vulnerabilities of your asset and attempt to exploit them.

In the words of Offensive Security (Creators of Kali Linux), Kali Linux is an advanced Penetration Testing and Security Auditing Linux distribution. For those that are familiar with BackTrack, basically Kali is a new creation based on Debian rather than Ubuntu, with significant improvements over BackTrack.

When it comes to actually getting Kali on some hardware, there is a multitude of options available.

All externally listening services by default are disabled, but very easy to turn on if/when required. The idea being to reduce chances of detecting the presence of Kali.

I’ve found the Kali Linux documentation to be of a high standard and plentiful.

In this article I’ll go over getting Kali Linux installed and set-up. I’ll go over a few of the packages in a low level of detail (due to the share number of them) that come out of the box. On top of that I’ll also go over a few programmes I like to install separately. In a subsequent article I’d like to continue with additional programmes that come with Kali Linux as there are just to many to cover in one go.

System Requirements

  1. Minimum of 8 GB disk space is required for the Kali install
  2. Minimum RAM 512 MB
  3. CD/DVD Drive or USB boot support

Supported Hardware

Officially supported architectures

i386, amd64, ARM (armel and armhf)

Unofficial (but maintained) images

You can download official Kali Linux images for the following, these are maintained on a best effort basis by Offensive Security.

  • VMware (pre-made vm with VMware tools installed)

ARM images

  • rk3306 mk/ss808CPU: dual-core 1.6 GHz A9

    RAM: 1 GB

  • Raspberry Pi
  • ODROID U2CPU: quad-core 1.7 GHz

    RAM: 2GB

    Ethernet: 10/100Mbps

  • ODROID X2CPU: quad-core Cortex-A9 MPCore

    RAM: 2GB

    USB 2: 6 ports

    Ethernet: 10/100Mbps

  • MK802/MK802 II
  • Samsung Chromebook
  • Galaxy Note 10.1
  • CuBox
  • Efika MX
  • BeagleBone Black

Create a Customised Kali Image

Kali also provides a simple way to create your own ISO image from the latest source. You can include the packages you want and exclude the ones you don’t. You can customise the kernel. The options are virtually limitless.

The default desktop environment is Gnome, but Kali also provides an easy way to configure which desktop environment you use before building your custom ISO image.

The alternative options provided are: KDE, LXDE, XFCE, I3WM and MATE.

Kali has really embraced the Debian ethos of being able to be run on pretty well any hardware with extreme flexibility. This is great to see.

Installation

You should find most if not all of what you need here. Just follow the links specific to your requirements.

As with BackTrack, the default user is “root” without the quotes. If your installing, make sure you use a decent password. Not a dictionary word or similar. It’s generally a good idea to use a mix of upper case, lower case characters, numbers and special characters and of a decent length.

I’m not going to repeat what’s already documented on the Kali site, as I think they’ve done a pretty good job of it already, but I will go over some things that I think may not be 100% clear at first attempt. Also just to be clear, I’ve done this on a Linux box.

Now once you have down loaded the image that suites your target platform,

you’re going to want to check its validity by verifying the SHA1 checksums. Now this is where the instructions can be a little confusing. You’ll need to make sure that the SHA1SUMS file that contains the specific checksum you’re going to use to verify the checksum of the image you downloaded, is in fact the authentic SHA1SUMS file. instructions say “When you download an image, be sure to download the SHA1SUMS and SHA1SUMS.gpg files that are next to the downloaded image (i.e. in the same directory on the server).”. You’ve got to read between the lines a bit here. A little further down the page has the key to where these files are. It’s buried in a wget command. Plus you have to add another directory to find them. The location was here. Now that you’ve got these two files downloaded in the same directory, verify the SHA1SUMS.gpg signature as follows:

$ gpg --verify SHA1SUMS.gpg SHA1SUMS
gpg: Signature made Thu 25 Jul 2013 08:05:16 NZST using RSA key ID 7D8D0BF6
gpg: Good signature from "Kali Linux Repository <devel@kali.org>

You’ll also get a warning about the key not being certified with a trusted signature.

Now verify the checksum of the image you downloaded with the checksum within the (authentic) SHA1SUMS file

Compare the output of the following two commands. They should be the same.

# Calculate the checksum of your downloaded image file.
$ sha1sum [name of your downloaded image file]
# Print the checksum from the SHA1SUMS file for your specific downloaded image file name.
$ grep [name of your downloaded image file] SHA1SUMS

Kali also has a live USB Install including persistence to your USB drive.

Community

IRC: #kali-linux on FreeNode. Stick to the rules.

What’s Included

> 300 security programmes packaged with the operating system:

Before installation you can view the tools included in the Kali repository.

Or once installed by issuing the following command:

# prints complete list of installed packages.
dpkg --get-selections | less

To find out a little more about the application:

dpkg-query -l '*[some text you think may exist in the package name]*'

Or if you know the package name your after:

dpkg -l [package name]

Want more info still?

man [package name]

Some of the notable applications installed by default

Metasploit

Framework that provides the infrastructure to create, re-use and automate a wide variety of exploitation tasks.

If you require database support for Metasploit, start the postgresql service.

# I like to see the ports that get opened, so I run ss -ant before and after starting the services.
ss -ant
service postgresql start
ss -ant

ss or “socket statistics” which is a new replacement programme for the old netstat command. ss gets its information from kernel space via Netlink.

Start the Metasploit service:

ss -ant
service metasploit start
ss -ant

When you start the metasploit service, it will create a database and user, both with the names msf3, providing you have your database service started. Now you can run msfconsole.

Start msfconsole:

msfconsole

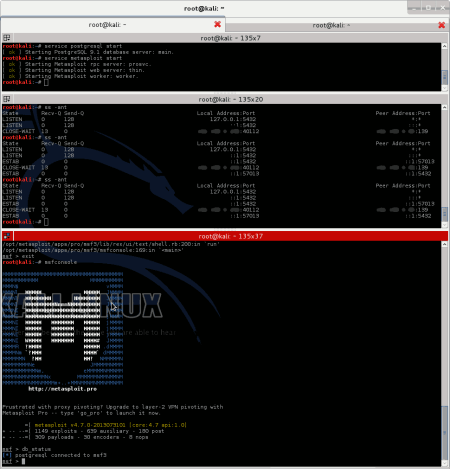

The following is an image of terminator where I use the top pane for stopping/starting services, middle pane for checking which ports are opened/closed, bottom pane for running msfconsole. terminator is not installed by default. It’s as simple as apt-get install terminator

metasploit

You can find full details of setting up Metasploits database and start/stopping the services here.

You can also find the Metasploit frameworks database commands simply by typing help database at the msf prompt.

# Print the switches that you can run msfconsole with.
msfconsole -h

Once your in msf type help at the prompt to get yourself started.

There is also a really easy to navigate all encompassing set of documentation provided for msfconsole here.

You can also set-up PostgreSQL and Metasploit to launch on start-up like this:

update-rc.d postgresql enable
update-rc.d metasploit enable

Offensive Security also has a Metasploit online course here.

Armitage

Just as it was included in BackTrack, which is no longer supporting Armitage, you’ll also find Armitage comes installed out of the box in version 1.0.4 of Kali Linux. Armitage is a GUI to assist in metasploit visualisation. You can find the official documentation here. Offensive Security has also done a good job of providing their own documentation for Armitage over here. To get started with Armitage, just make sure you’ve got the postgresql service running. Armitage will start the metasploit service for you if it’s not already running. Armitage allows your red team to collaborate by using a single instance of Metasploit. There is also a commercial offering developed by Raphael Mudge’s company “Strategic Cyber LLC” which also created Armitage, called Cobalt Strike. Cobalt Strike currently costs $2500 per user per year. There is a 21 day trial though. Cobalt Strike offers a bunch of great features. Check them out here. Armitage can connect to an existing instance of Metasploit on another host.

NMap

Target use is network discovery and auditing. Provides host information for anything it can access from a network. Also now has a scripting engine that can execute arbitrary custom tasks.

I’m guessing we’ve probably all used NMap? ZenMap which Kali Linux also provides out of the box Is a gui for NMap. This was also included in BackTrack.

Intercepting Web Proxies

Burp Suite

I use burp quite regularly and have a few blog posts where I’ve detailed some of it’s use. In fact I’ve used it to reverse engineer the comms between VMware vSphere and ESXi to create a UPS solution that deals with not only virtual hosts but also the clients.

WebScarab

I haven’t really found out what webscarab’s sweet spot is if it has one. I’d love to know what it does better than burp, zap and w3af combined? There is also a next generation version which according to the google code repository hasn’t had any work done on it since March 2011, where as the classic version is still receiving fixes. The documentation has always seemed fairly minimalistic also.

In terms of web proxy/interceptors I’ve also used fiddler which relies on the .NET framework and as mono is not installed out of the box on Kali, neither is fiddler.

OWASP Zed Attack Proxy (ZAP)

Which is an OWASP flagship project, so it’s free and open source. Cross platform. It was forked from the Paros Proxy project which is not longer supported. Includes automated, passive, brute force and port scanners. Traditional and AJAX spiders. Can even find unlinked files. Provides fuzzing, port scanning. Can be run without the UI in headless mode and can be accessed via a REST API. Supports Anti CSRF tokens. The Script Console that is one of the add-ons supports any language that JSR (Java Specification Requests) 223 supports. That’s languages such as JavaScript Groovy, Python, Ruby and many more. There is plenty of info on the add-ons here. OWASP also provide directions on how to write your own extensions and they provide some sample templates. Following is the list of current extensions, which can also be managed from within Zap. “Manage Add-ons” menu → Marketplace tab. Select and click “Install Selected”

OWASP Zap

The idea is to first set Zap up as a proxy for your browser. Fetch some web pages (build history). Zap will create a history of URLs. You then right click the item of interest and click Attack->[one of the spider options], then click the play button and watch the progress bar. which will crawl all the pages you have access to according to your permissions. Then under the Analyse menu → Scan Policy… Setup your scan policy so your only scanning what you want to scan. Then hit Scan to assess your target application. Out of the box, you’ve got many scan options. Zap does a lot for you. I’m really loving this tool OWASP!

As usual with OWASP, zap has a wealth of documentation. If zap doesn’t provide enough out of the box, extend it. OWASP also provide an API for zap.

You can find the user group here (also accessible from the ZAP ‘Online’ menu.), which is good for getting help if the help file (which can also be found via ZAP itself) fails to yeild. There is also a getting started guide which is a work in progress. There is also the ZAP Blog.

FoxyProxy

Although nothing to do with Kali Linux and could possibly be in the IceWeasel add-ons section below, I’ve added it here instead as it really reduces friction with web proxy interception. FoxyProxy is a very handy add-on for both firefox and chromium. Although it seems to have more options for firefox, or at least they are more easily accessible. It allows you to set-up a list of proxies and then switch between them as you need. When I run chromium as a non root user I can’t change the proxy settings once the browser is running. I have to run the following command in order to set the proxy to my intermediary before run time like this:

chromium-browser --temp-profile –proxy-server=localhost:3001

Firefox is a little easier, but neither browsers allow you to build up lists of proxies and then switch them in mid flight. FoxyProxy provides a menu button, so with two clicks you can disable the add-on completely to revert to your previous settings, or select any or your predefined proxies. This is a real time saver.

Vulnerability Scanners

Open Vulnerability Assessment System (OpenVAS)

Forked from the last free version (closed in 2005) of Nessus. OpenVAS plugins are written in the same language that Nessus uses. OpenVAS looks for known misconfigurations and vulnerabilities common in out of date software. In fact it covers the following OWASP Top 10 items:

  • No.5 Security Misconfiguration
  • No.7 Missing Function Level Access Control (formerly known as “failure to restrict URL access”)
  • No.9 Using Components with Known Vulnerabilities.

OpenVAS also has some SQLi and other probes to test application input, but it’s primary purpose is to scan networks of machines with out of date software and bad configurations.

Tests continue to be added. Now currently at 32413 Network Vulnerability Tests (NVTs) details here.

OpenVAS

Greenbone Security Desktop (gsd) who’s package is a GUI that uses the Greenbone Security Manager, OpenVAS Manager or any other service that offers the OpenVAS Management Protocol (omp) protocol. Currently at version 1.2.2 and licensed under the GPLv2. The Greenbone Security Assistant (gsad) is currently at version 4.0.0. The Germany government also sponsor OpenVAS.

From the menu: Kali Linux → Vulnerability Analysis → OpenVAS, we have a couple of short-cuts visible. openvas-gsd is actually just the gsd package and openvas-setup which is the set-up script.

Before you run openvas-gsd, you can either:

  1. Run openvas-setup which will do all the setup which I think is already done on Kali. At the end of this, you will be prompted to add a password for a user to the Admin role. The password you add here is for a new user called “admin” (of course it doesn’t say that, so can be a little confusing as to what the password is for).
  2. Or you can just run the following command, which is much quicker because you don’t run the set-up procedure:
openvasad -c 'add_user' -n [a new administrative username of your choosing] -r Admin

You’ll be prompted to add a new password. Make sure you remember it.

Check out the man page for further options. For example the -c switch is a shortened –command and it lists a selection of commands you can use.

I think -n is for –name although not listed in the man page. -r switch is –role. Either User or Admin.

The user you’ve just added is used to connect the gsd to the:

  1. openvasmd (OpenVAS Manager daemon) which listens on port 9390
  2. openvassd (OpenVAS Scanner daemon) which listens on port 9391
  3. gsad (Greenbone Security Assistant daemon) which listens on port 9392. This is a web app, which also listens on port 443
  4. openvasad (OpenVAS Administrator daemon) which listens on 9393

The core functionality is provided by the scanner and the manager. The manager handles and organises scan results. The gsad or assistant connects to the manager and administrator to provide a fully featured user interface. There is also a CLI (omp) but I haven’t been able to get this going on Kali Linux yet. You’ll also find that the previous link has links to all the man pages for OpenVAS. You can read more about the architecture and how the different components fit together.

I’ve also found that sometimes the daemons don’t automatically start when gsd starts. So you have to start them manually.

openvasmd && openvassd && gsad && openvasad

You can also use the web app https://127.0.0.1/omp

Then try logging in to the openvasmd. When your finished with gsd you can kill the running daemons if you like. I like to keep an eye on the listening ports when I’m done to keep things as quite as possible.

Check the ports.

ss -anp

Optional to see the processes running, but not necessary.

ps -e
kill -9 <PID of openvasad> <PID of gsad> <PID of openvassd> <PID of openvasmd>

There are also plenty of options when it comes to the report. This can be output in HTML, PDF, XML, Emailed and quite a few others. The reports are colour coded and you can choose what to have put in them. The vulnerabilities are classified by risk: High, Medium, Low, OpenVAS can take quite a while to scan as it runs so many tests.

This is how to get started with gsd.

Web Vulnerability Scanners

This is the generally accepted criteria of a tool to be considered a Web Application Security Scanner.

SkipFish

A high performance active reconnaissance tool written in C. From the documentation “Multiplexing single-thread, fully asynchronous network I/O and data processing model that eliminates memory management, scheduling, and IPC inefficiencies present in some multi-threaded clients.”. OK. So it’s fast.

which prepares an interactive sitemap by carrying out a recursive crawl and probes based on existing dictionaries or ones you build up yourself. Further details in the documentation linked below.

Doesn’t conform to most of the criteria outlined in the above Web Application Security Scanner criteria.

SkipFish v2.05 is the current version packaged with Kali Linux.

SkipFish v2.10b (released Dec 2012)

Free and you can view the source code. Apache license 2.0

Performs a similar role to w3af.

Project details can be found here.

You can find the tests here.

How do you use it though? This is a good place to start. Instead of reading through the non-existent doc/dictionaries.txt, I think you can do as well by reading through /usr/share/skipfish/dictionaries/README-FIRST.

The other two documentation sources are the man page and skipfish with the -h option.

Web Application Attack and Audit Framework (w3af)

Andres Riancho has created a masterpiece. The main behavior of this application is to assess and identify vulnerabilities in a web application by sending customised HTTP requests. Results can be output in quite a few formats including email. It can also proxy, but burp suite is more focused on this role and does it well.

Can be run with a gui: w3af_gui or from the terminal: w3af_console. Written in Python and Runs on Linux BSD or Mac. Older versions used to work on Windows, but it’s not currently being tested on Windows. Open source on GitHub and released under the GPLv2 license.

You can write your own plug-ins, but check first to make sure it doesn’t already exist. The plugins are listed within the application and on the w3af.org web site along with links to their source code, unit tests and descriptions. If it doesn’t appear that the plug-in you want exists, contact Andres Riancho to make sure, write it and submit a pull request. Also looks like Andres Riancho is driving the development TDD style, which means he’s obviously serious about creating quality software. Well done Andres!

w3af provides the ability to inject your payloads into almost every part of the HTTP request by way of it’s fuzzing engine. Including: query string, POST data, headers, cookie values, content of form files, URL file-names and paths.

There’s a good set of documentation found here and you can watch the training videos. I’m really looking forward to using this in anger.

w3af

Nikto

Is a web server scanner that’s not overly stealthy. It’s built on “Rain Forest Puppies” LIbWhisker2 which has a BSD license.

Nikto is free and open source with GPLv3 license. Can be run on any platform that runs a perl interpreter. It’s source can be found here. The first release of Nikto was in December of 2001 and is still under active development. Pull requests encouraged.

Suports SSL. Supports HTTP proxies, so you can see what Nikto is actually sending. Host authentication. Attack encoding. Update local databases and plugins via the -update argument. Checks for server configuration items like multiple index files and HTTP server options. Attempts to identify installed web servers and software.

Looks like the LibWhisker web site no longer exists. Last release of LibWhisker was at the beginning of 2010.

Nikto v2.1.4 (Released Feb 20 2011) is the current version packaged with Kali Linux. Tests for multiple items, including > 6400 potentially dangerous files/CGIs. Outdated versions of > 1200 servers. Insecurities of specific versions of > 270 servers.

Nikto v2.1.5 (released Sep 16 2012) is the latest version. Tests for multiple items, including > 6500 potentially dangerous files/CGIs. Outdated versions of > 1250 servers. Insecurities of specific versions of > 270 servers.

Just spoke with the Kali developers about the old version. They are now building a package of 2.1.5 as I write this. So should be an apt-get update && apt-get upgrade away by the time you read this all going well. Actually I can see it in the repo now. Man those guys are responsive!

Most of the info you will need can be found here.

SQLNinja

sqlninja: Targets Microsoft SQL Servers. Uses SQL injection vulnerabilities on a web app. Focuses on popping remote shells on the target database server and uses them to gain a foothold over the target network. You can set-up graphical access via a VNC server injection. Can upload executables by using HTTP requests via vbscript or debug.exe. Supports direct and reverse bindshell. Quite a few other methods of obtaining access. Documentation here.

Text Editors

  1. Vim. Shouldn’t need much explanation.
  2. Leafpad. This is a very basic graphical text editor. A bit like Windows Notepad.
  3. Gvim. This is the Graphical version of Vim. I’ve mostly used sublime text 2 & 3, gedit on Linux, but Gvim is really quite powerful too.

Note Keeping

  1. KeepNote. Supported on Linux, Windows and MacOS X. Easy to transport notes by zipping or copying a folder. Notes stored in HTML and XML.
  2. Zim Desktop Wiki.

Other Notable Features

  • Offensive Securities Kali Linux is free and always will be. It’s also completely open (as it’s based on debian) to modification of it’s OS or programmes.
  • FHS compliant. That means the file system complies to the Linux Filesystem Hierarchy Standard
  • Wireless device support is vast. Including USB devices.
  • Forensics Mode. As with BackTrack 5, the Kali ISO also has an option to boot into the forensic mode. No drives are written to (including swap). No drives will be auto mounted upon insertion.

Customising installed Kali

Wireless Card

I had a little trouble with my laptop wireless card not being activated. Turned out to be me just not realising that an external wi-fi switch had to be turned on. I had wireless enabled in the BIOS. The following where the steps I took to resolve it:

Read Kali Linux documentation on Troubleshooting Wireless Drivers  and found the card listed with lspci. Opened /var/log/dmesg with vi. Searched for the name of the card:

#From command mode to make search case insensitive:
:set ic
#From command mode to search
/[name of my wireless card]

There were no errors. So ran iwconfig (similar to ifconfig but dedicated to wireless interfaces). I noticed that the card was definitely present and the Tx-Power was off. I then thought I’d give rfkill a spin and it’s output made me realise I must have missed a hardware switch somewhere.

rfkill

Found the hard switch and turned it on and we now have wireless.

Adding Shortcuts to your Panel

[Alt]+[right click]->[Add to Panel…]

Or if your Kali install is on VirtualBox:

[Windows]+[Alt]+[right click]->[Add to Panel…]

Caching Debian Packages

If you want to:

  1. save on bandwidth
  2. have a large number of your packages delivered at your network speed rather than your internet speed
  3. have several debian based machines on your network

I’d recommend using apt-cacher-ng. If not already, you’ll have to set this up on a server and add the following file to each of your debian based machines.

/etc/apt/apt.conf with the following contents and set it’s permissions to be the same as your sources.list:

Acquire::http::Proxy “http://[ip address of your apt-cacher server]:3142”;

IceWeasel add-ons

  • Firebug
  • NoScript
  • Web Developer
  • FoxyProxy (more details mentioned above)
  • HackBar. Somewhat useful for (en/de)coding (Base64, Hex, MD5, SHA-(1/256), etc), manipulating and splitting URLs

SQL Inject Me

Nothing to do with Kali Linux, but still a good place to start for running a quick vulnerability assessment. Open source software (GPLv3) from Security Compass Labs. SQL Inject Me is a component of the Exploit-Me suite. Allows you to test all or any number of input fields on all or any of a pages forms. You just fill in the fields with valid data, then test with all the tools attacks or with the top that you’ve defined in the options menu. It then looks for database errors which are rendered into the returned HTML as a result of sending escape strings, so doesn’t cater for blind injection. You can also add remove escape strings and resulting error strings that SQL Inject Me should look for on response. The order in which each escape string can be tried can also be changed. All you need to know can be found here.

XSS Me

Nothing to do with Kali Linux, but still a good place to start for running a quick vulnerability assessment. Open source software (GPLv3) from Security Compass Labs. XSS Me is also a component of the Exploit-Me suite. This tool’s behaviour is very similar to SQL Inject Me (follows the POLA) which makes using the tools very easy. Both these add-ons have next to no learning curve. The level of entry is very low and I think are exactly what web developers that make excuses for not testing their own security need. The other thing is that it helps developers understand how these attacks can be carried out. XSS Me currently only tests for reflected XSS. It doesn’t attempt to compromise the security of the target system. Both XSS Me and SQL Inject Me are reconnaissance tools, where the information is the vulnerabilities found. XSS Me doesn’t support stored XSS or user supplied data from sources such as cookies, links, or HTTP headers. How effective XSS Me is in finding vulnerabilities is also determined by the list of attack strings the tool has available. Out of the box the list of XSS attack strings are derived from RSnakes collection which were donated to OWASP who now maintains it as one of their cheatsheets.. Multiple encodings are not yet supported, but are planned for the future. You can help to keep the collection up to date by submitting new attack strings.

Chromium

Because it’s got great developer tools that I’m used to using. In order to run this under the root account, you’ll need to add the following parameter to /etc/chromium/default between the quotes for CHROMIUM_FLAGS=””

--user-data-dir

I like to install the following extensions: Cookies, ScriptSafe

Terminator

Because I like a more powerful console than the default. Terminator adds split screen on top of multi tabs. If you live at the command line, you owe it to yourself to get the best console you can find. So far terminator still fits this bill for me.

KeePass

The password database app. Because I like passwords to be long, complex, unique for everything and as secure as possible.

Exploits

I was going to go over a few exploits we could carry out with the Kali Linux set-up, but I ran out of time and page space. In fact there are still many tools I wanted to review, but there just isn’t enough time or room in this article. Feel free to subscribe to my blog and you’ll get an update when I make posts. I’d like to extend on this by reviewing more of the tools offered in Kali Linux

Input Sanitisation

This has been one of my pet topics for a while. Why? Because the lack of it is so often abused. In fact this is one of the primary techniques for No.1 (Injection) and No.3 (XSS) of this years OWASP Top 10 List (unchanged from 2010). I’d encourage any serious web developers to look at my Sanitising User Input From Browser. Part 1” and Part 2

Part 1 deals with the client side (untrused) code.

Part 2 deals with the server side (trusted) code.

I provide source code, sources and discuss the following topics:

  1. Minimising the attack surface
  2. Defining maximum field lengths (validation)
  3. Determining a white list of allowable characters (validation)
  4. Escaping untrusted data
  5. External libraries, cheat sheets, useful code and sites, I used. Also discuss the less useful resources and why.
  6. The point of validating client side when the server side is going to do it again anyway
  7. Full set of server side tests to test the sanitisation is doing what is expected
